Hybrid Power System

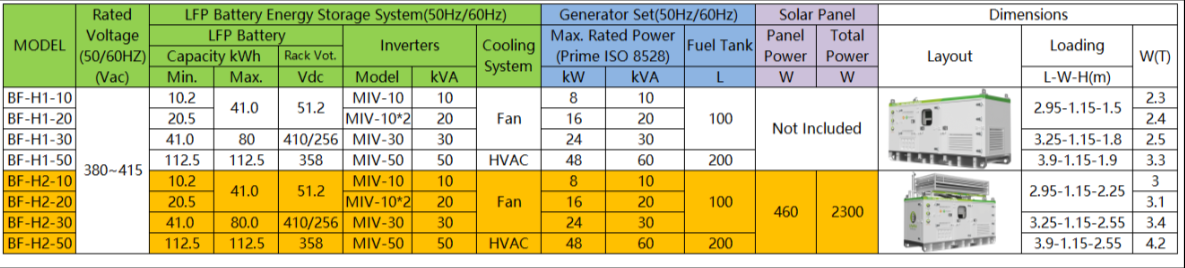

Technical Parameters

Notes:

1.Diesel engines are available from Perkins, Kubota, and Yanmar.

2.The MPPT controller is optional for the H1 series. Grid-connected/off-grid functionality is standard.

3.The SCG 120MKll is a generator set with a hybrid inverter. The AGC 150 is a generator set with a PCS.

4.Standard Test Conditions (STC) for solar panels: 21,000 W/m² of sunlight intensity, 25°C of photovoltaic panel temperature, and an air mass of 1.5.

5.Seamless switching between the diesel generator and PCS is possible.

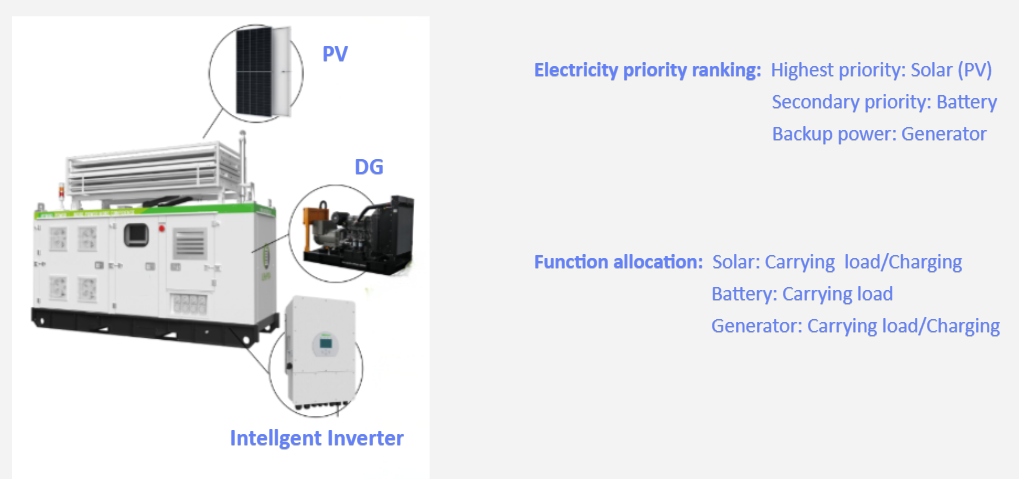

Product Structure

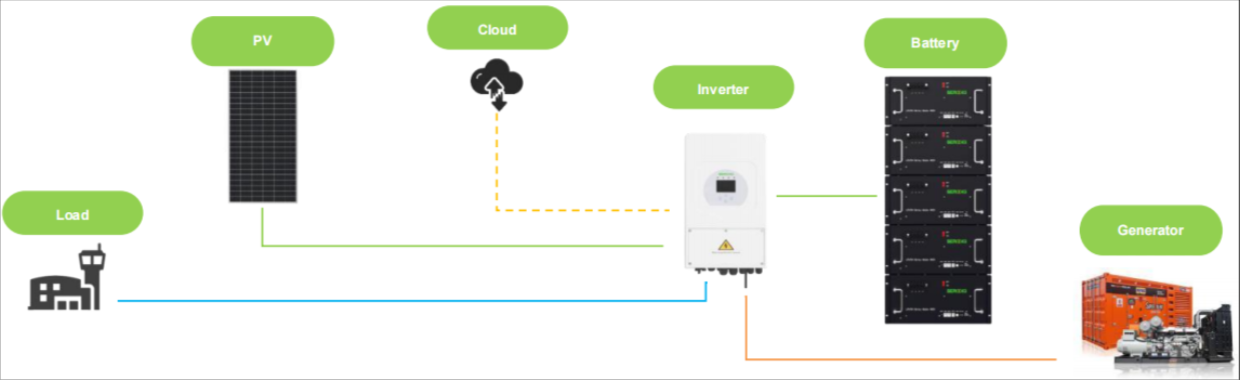

BF-H series of hybrid energy power stations integrate diesel generators, solar photovoltaic panels, energy storage batteries and hybrid inverters to form a highly integrated and safe power supply unit.

Product Advantages

1.Convenience: Integrated installation design, easy to store, transport and control the system.

2.Economical: High return on investment and short payback period.

3.Ease of use: simple operation, intelligent control, and easy maintenance.

4.Flexibility: Supports power and capacity expansion to meet different user needs.

5.Seamless switching: Seamless switching between multiple power sources to ensure power supply stability.
