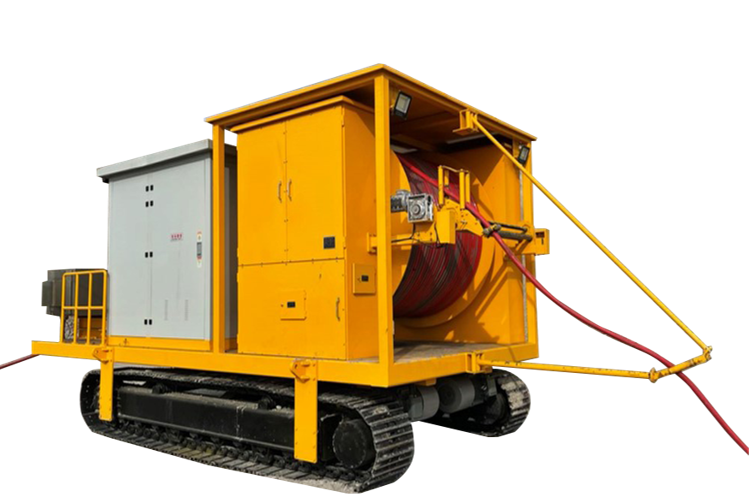

Mining Cable Management System CMS

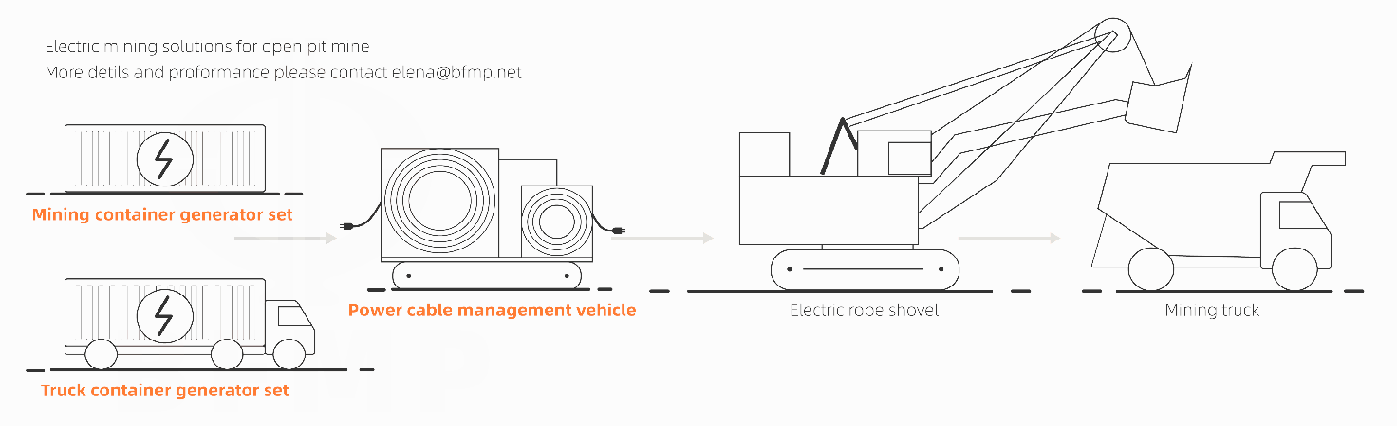

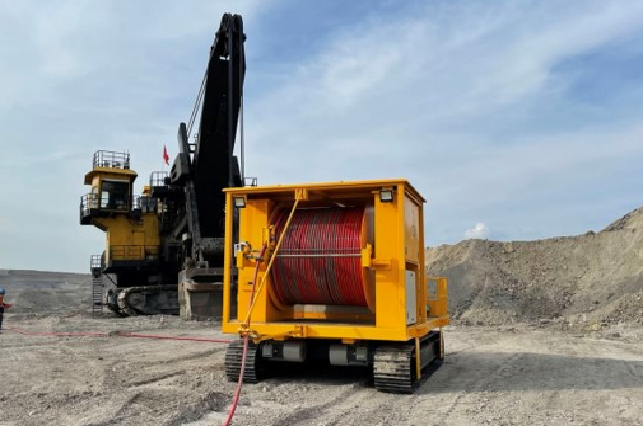

It’s a Sautonomous vehicle automatic follow the rope shovel to manage the trailing cable.

Advantages：

Safety:No manual handling of energized cables required

Efficient:Automatically adjusts cable length based on tension

Economical:Maximizes productive time with rapid lead cable management

Extend Cable Lifespan:Prevents crushing/dragging damage to extend cable lifespan

characteristic:

Auto-follow: Tracks equipment movement w/in preset radius, boosting efficiency.

Auto-tensioning: Remote-controlled cable retraction based on real-time load.

Damage Prevention: Real-time monitoring eliminates cable overextension risks.

Zero Manual Handling: Removes worker exposure to high-tension zones

Supply Scope:

Supply voltage：6.6kV or 10kV
Main winch cable length：500 m

Auxiliary winch cable：50-80 m

Adaptation:

CAT、Komatsu、Liebherr  electric excavator/electric rope shovel
Epiroc Boomer series Drilling rig
Electric ore conveyor
Main cable length over 1000m can be customized

· Local operation
· wireless remote control
· remote control  optional
· intelligent automatic follow optional
